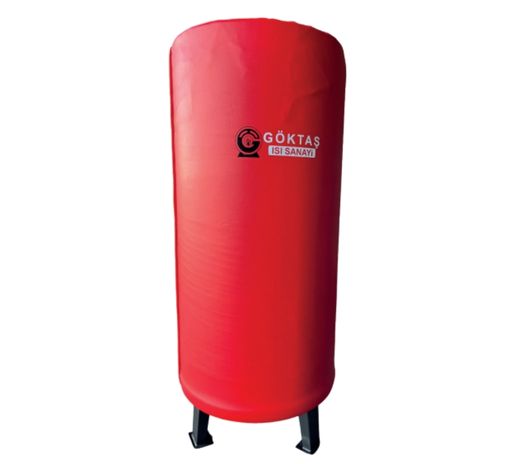

Single Coil Water Heater
Single coil water heaters are designed to quickly and efficiently produce domestic hot water while being compatible with various heat sources. With a durable steel body, high thermal insulation, and magnesium anode protection, they offer long-lasting and safe operation.
It works in full harmony with condensing boilers, heat pumps, and solar energy systems. Available in capacities ranging from 100 to 5000 L, it is suitable for residential and industrial applications. High insulation and synthetic leather coating minimize heat losses.
VIEW TECHNICAL SPECIFICATIONSTechnical Specifications – Single Coil Water Heater
| Specifications | GBT 100 | GBT 160 | GBT 200 | GBT 300 | GBT 400 | GBT 500 | GBT 800 | GBT 1000 | GBT 1500 | GBT 2000 | GBT 2500 | GBT 3000 | GBT 4000 | GBT 5000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volume – V (L) | 100 | 160 | 200 | 300 | 400 | 500 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Diameter – D (mm) | 490 | 590 | 590 | 750 | 750 | 950 | 950 | 1120 | 1260 | 1460 | 1460 | 1710 | 1710 | 1710 |
| Height – H (mm) | 1030 | 1060 | 1300 | 1810 | 1380 | 1620 | 1670 | 2010 | 2250 | 2250 | 2200 | 2600 | 2500 | 3000 |
| Water Inlet/Outlet – N1-N2 (inch) | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" | 2" |
| Coil Inlet/Outlet – N4-N3 (inch) | 1" | 1" | 1" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" |
| Circulation Connection – N5 (inch) | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" | 2" |
| Magnesium Anode – N6 (inch) | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" |
| Additional Electric Heater – N7 (inch) | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Thermometer – N8 (inch) | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Cleaning Flange – N9 (inch) | 4" | 4" | 4" | 4" | 4" | 4" | 5" | 5" | 5" | 5" | 5" | 5" | 5" | 5" |
| Drain – N10 (inch) | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" |
| Empty Weight – W (kg) | 53 | 63 | 81 | 99 | 117 | 139 | 192 | 240 | 335 | 470 | 665 | 710 | 885 | 1005 |
