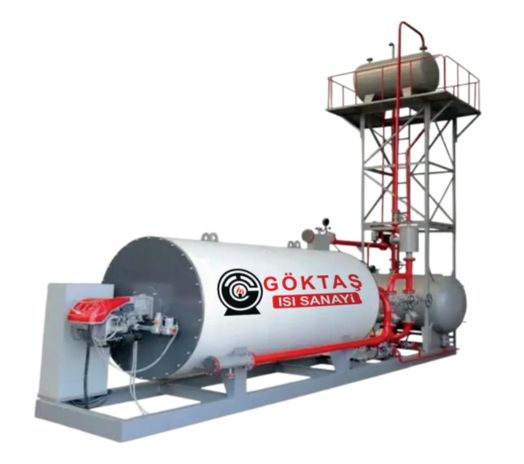

Thermal Oil Boiler
Thermal oil systems are heating solutions that can safely reach high temperatures where heat transfer fluids such as water or steam cannot. They provide stable and efficient heating in processes and can easily reach 280–300 °C under atmospheric pressure.
The thermal conductivity coefficients of heat transfer oils are higher compared to other fluids. This provides fast heat transfer, precise temperature control, and low operating costs. Since there is no risk of corrosion or freezing, maintenance continuity is improved.
Göktaş Isı Sanayi designs, manufactures, and commissions thermal oil boilers according to your project requirements, with customizable capacities and automation options.
VIEW TECHNICAL SPECIFICATIONSTechnical Specifications

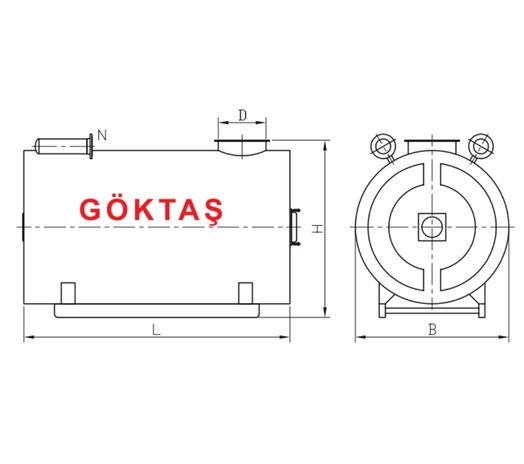

| Product Code | Thermal Capacity | Dimensions (mm) | Oil Inlet/Outlet N (DN) |
Oil Volume (L) |
Flue Gas Resistance (mmSS) |
Approx. Weight (Kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| (kcal/h) | (kW) | B | L | H | D | |||||
| GKYK 150 | 150.000 | 174 | 1280 | 1490 | 1630 | 200 | 40 | 146 | 20 | 1,9 |
| GKYK 200 | 200.000 | 233 | 1320 | 1540 | 1670 | 200 | 50 | 168 | 20 | 2,1 |
| GKYK 300 | 300.000 | 349 | 1360 | 1780 | 1710 | 220 | 65 | 220 | 25 | 2,4 |
| GKYK 500 | 500.000 | 581 | 1470 | 2150 | 1820 | 250 | 80 | 330 | 25 | 3,0 |
| GKYK 600 | 600.000 | 698 | 1520 | 2265 | 1870 | 300 | 80 | 375 | 30 | 3,3 |
| GKYK 800 | 800.000 | 930 | 1600 | 2455 | 1950 | 350 | 100 | 555 | 35 | 3,7 |
| GKYK 1000 | 1.000.000 | 1.163 | 1660 | 2620 | 2010 | 400 | 100 | 635 | 40 | 4,0 |
| GKYK 1250 | 1.250.000 | 1.453 | 1700 | 3070 | 2050 | 450 | 125 | 815 | 45 | 4,6 |
| GKYK 1500 | 1.500.000 | 1.744 | 1760 | 3380 | 2110 | 450 | 125 | 965 | 50 | 5,3 |
| GKYK 2000 | 2.000.000 | 2.326 | 1950 | 3835 | 2300 | 500 | 150 | 1305 | 55 | 6,7 |
| GKYK 2500 | 2.500.000 | 2.907 | 2010 | 4440 | 2360 | 550 | 150 | 1625 | 60 | 8,0 |
| GKYK 3000 | 3.000.000 | 3.488 | 2110 | 4900 | 2460 | 600 | 200 | 1915 | 65 | 9,3 |
| GKYK 4000 | 4.000.000 | 4.651 | 2250 | 5750 | 2600 | 700 | 200 | 2475 | 70 | 10,8 |
| GKYK 5000 | 5.000.000 | 5.814 | 2450 | 6510 | 2800 | 750 | 200 | 3180 | 80 | 13,8 |
| GKYK 6000 | 6.000.000 | 6.977 | 2630 | 7150 | 3000 | 800 | 200 | 3835 | 90 | 15,9 |
| GKYK 7000 | 7.000.000 | 8.140 | 2800 | 8000 | 3150 | 850 | 200 | 5300 | 95 | 23 |
| GKYK 8000 | 8.000.000 | 9.302 | 2960 | 8500 | 3350 | 900 | 200 | 6000 | 100 | 31 |
| GKYK 9000 | 9.000.000 | 10.465 | 3100 | 9500 | 3450 | 950 | 250 | 9070 | 110 | 37 |
| GKYK 10000 | 10.000.000 | 11.628 | 3300 | 9500 | 3650 | 1000 | 250 | 10050 | 120 | 43 |
