Solid Fuel Steam Boilers and Front Furnace Fired Steam Boilers

Solid fuel steam boilers with stoker systems and a three-pass cylindrical body design provide safe and efficient steam production using fuels such as coal, wood, and peat. They are designed to meet steam requirements ranging from 500–3000 kg/h. For higher capacity demands, the front furnace firing system increases capacity, ensuring stable and continuous steam production.

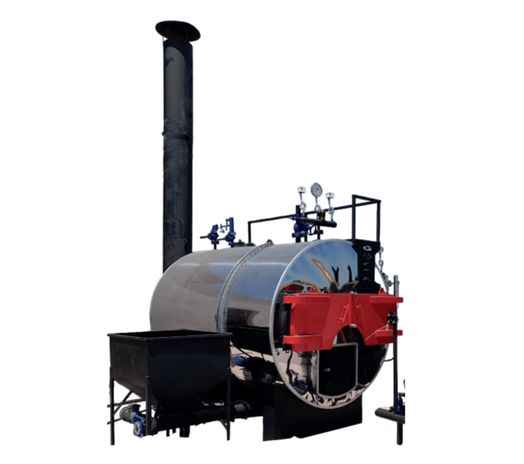

Solid Fuel Steam Boiler - Product Image

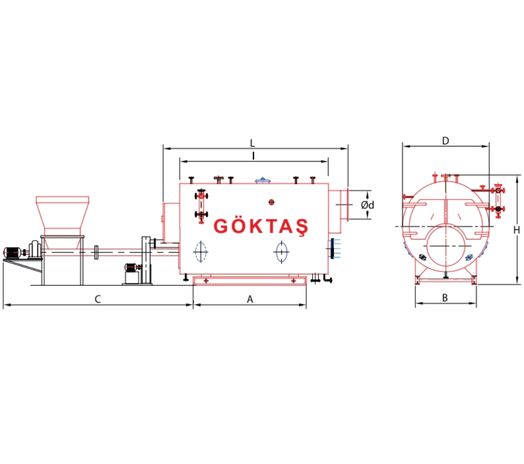

Solid Fuel Steam Boiler - Technical Drawing

Thanks to its large steam volume, process continuity is maintained even during sudden consumption fluctuations. Fuel feeding and combustion control are optimized by the stoker system; with the integration of a front furnace firing system, higher steam flow rates can be achieved.

  • Three-pass cylindrical body; high heat transfer and efficiency
  • Stoker-fired solid fuel combustion system (coal, wood, peat)
  • Steam production capacity between 500–3000 kg/h
  • Solution for high-capacity demands with front furnace firing system
  • Large steam volume for rapid response to sudden demand
VIEW TECHNICAL SPECIFICATIONS

Technical Specifications

Product Code Steam Capacity
(kg/h)		 Thermal Capacity
(kcal/h)		 Flue Gas Resistance
(mmSS)		 Water Volume
(m³)		 Dimensions (mm) Weight (Kg) – Operating Pressure (bar)
D H I L A B d C 6 8 10 12
GBK 20500280.000502,8 1950225030003630210012003502300 5,96,16,26,5
GBK 30800448.000503,7 2100240036504300280015003502300 6,97,17,57,9
GBK 401.000560.000605,4 2250255039204650300017004002400 7,78,28,59,0
GBK 501.250700.000656,7 2300260038004550290018004002400 8,59,29,910,4
GBK 601.500840.000757,5 2300260039304660300018004502500 8,99,710,310,9
GBK 802.0001.120.000708,9 2400270043205150340019005002500 10,411,011,912,7
GBK 1002.5001.400.0007512,4 2700300047705700380021005502850 12,913,915,216,1
GBK 1203.0001.680.0007513,0 2800310050706100410022006002850 14,215,116,517,7
