Air Tank

An air tank is a storage device that ensures more efficient and stable operation of compressed air systems by balancing pressure fluctuations. It activates during sudden air demands that exceed the compressor’s capacity, supplying the required air from storage and helping prevent pressure drops in the system.

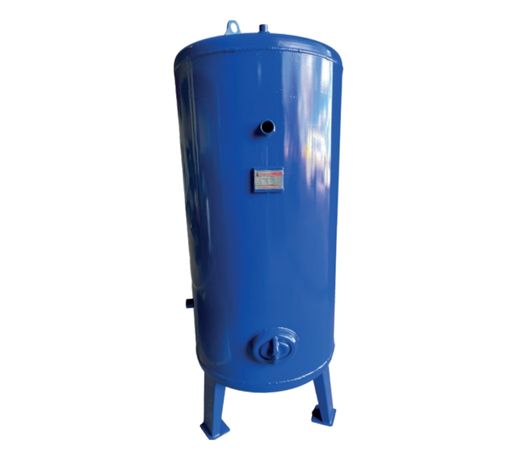

Air Tank - Product Image

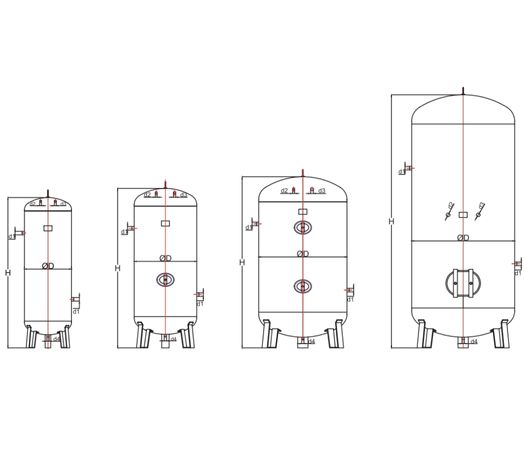

Air Tank - Technical View

Another important function of the air tank is to facilitate condensation of moisture in the air and discharge the condensed water through drain valves. This allows dry air to circulate through the lines, reducing the risk of moisture-related equipment failures.

  • Balances demand fluctuations in compressed air systems
  • Activates stored air during sudden demand exceeding compressor capacity
  • Facilitates condensation of moisture and discharges condensed water
  • Provides dry air in the lines, helping protect equipment
TECHNICAL SPECIFICATIONS (OPTIONAL)

Vertical Type Air Tanks - Technical Specifications

Product Code Volume (L) Design Pressure (bar) ØD (mm) H (mm) Inspection (mm) d1 d2 d3 d4
KD 101011 / 16 / 40219500-3/4"1/2"1/2"1/2"
KD 505011 / 16 / 40300900-3/4"1/2"1/2"1/2"
KD 10010011 / 16 / 403841100-3/4"1/2"1/2"1/2"
KD 20020011 / 16 / 404501600-3/4"1/2"1/2"1/2"
KD 30030011 / 16 / 404801900-2"1/2"1/2"1/2"
KD 50050011 / 16 / 408502250110×1601 1/4"1"3/4"1/2"
KD 1000100011 / 16 / 4011002150(2x)110×1602"1 1/2"3/4"1/2"
KD 1500150011 / 16 / 4011002450(2x)110×1602"1 1/2"3/4"1/2"
KD 1800180011 / 16 / 4011502550(2x)110×1602"1 1/2"1"3/4"
KD 2000200011 / 16 / 4012003200320×4202 1/2"1 1/2"3/4"3/4"
KD 3000300011 / 16 / 4014003400320×420DN801 1/2"1"1"
KD 4000400011 / 16 / 4014004200320×420DN801 1/2"1"1"
KD 5000500011 / 16 / 4016004700320×420DN801 1/2"1"1"
KD 6000600011 / 16 / 4016004800320×420DN1001 1/2"1"1"
KD 8000800011 / 16 / 4016005500320×420DN1001 1/2"1"1"
KD 100001000011 / 16 / 4019005500320×420DN1001/2"1"1"
KD 150001500011 / 16 / 4019006100320×420DN1001/2"1"1"
