PRODUCT DETAILS

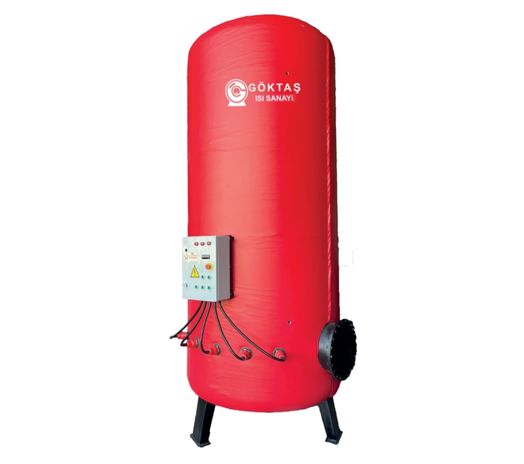

Electric Water Heater
Electric water heaters are systems that efficiently produce and store domestic hot water using integrated electric heaters. With a wide range of volume options, high thermal insulation, and durable body structure, they offer a reliable solution for residential, commercial, and industrial applications.
Electric water heaters, offering high-efficiency storage capability, stand out with their ease of installation and use. With an S235JR steel body, magnesium anode protection, and synthetic leather coating, they ensure long lifespan and minimal heat loss.
VIEW TECHNICAL SPECIFICATIONSTechnical Specifications – Electric Water Heater (GBE Series)
| Specifications | GBE 100 | GBE 160 | GBE 200 | GBE 300 | GBE 400 | GBE 500 | GBE 800 | GBE 1000 | GBE 1500 | GBE 2000 | GBE 2500 | GBE 3000 | GBE 4000 | GBE 5000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volume – V (L) | 100 | 160 | 200 | 300 | 400 | 500 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Diameter – D (mm) | 490 | 590 | 590 | 590 | 750 | 750 | 950 | 950 | 1120 | 1260 | 1460 | 1460 | 1710 | 1710 |
| Height – H (mm) | 1030 | 1060 | 1300 | 1810 | 1380 | 1620 | 1670 | 2010 | 2250 | 2250 | 2200 | 2600 | 2500 | 3000 |
| Electric Heater Connection – N6 (inch) | Heater selection is made according to customer request. | |||||||||||||
| Water Inlet/Outlet – N1–N3 (inch) | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" |
| Circulation Connection – N2 (inch) | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/2" | 2" | 2" |
| Empty Weight | Product weights vary depending on the selected heater. | |||||||||||||
| Thermometer & Sensor – N5 (inch) | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Magnesium Anode – N4 (inch) | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" |
| Drain – N8 (inch) | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" |
| Cleaning Flange – N7 (inch) | 4" | 4" | 4" | 4" | 4" | 4" | 5" | 5" | 5" | 5" | 5" | 5" | 5" | 5" |
