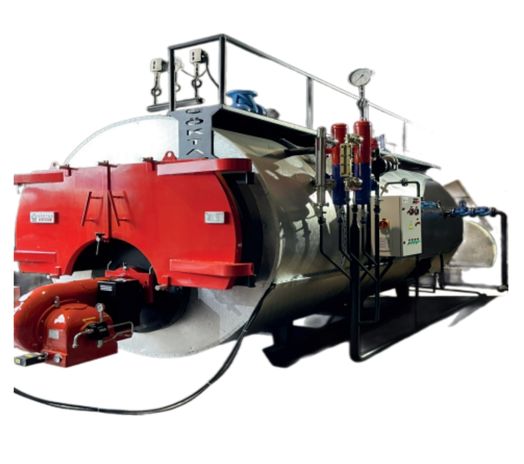

Fire Tube Steam Boilers
Steam boilers are systems that heat water under high temperature and pressure to convert it into steam. Water circulates on one side of the heating surfaces, while flame–smoke gases generated by fuel combustion flow on the other. In this closed and pressurized structure, heat energy is transferred to water, producing steam safely and efficiently.
While the water inside the steam boiler acts as a heat-absorbing fluid, fuels such as coal, natural gas, and diesel burn on the heat-emitting side. Our boilers are manufactured with a large steam volume to meet sudden steam demands. Production is carried out in accordance with the ISO 9001 quality management system and complies with TSE and CE standards.
VIEW TECHNICAL SPECIFICATIONSTeknik Özellikler
| Product Code | Thermal Capacity | Flue Gas Resistance (mmSS) |
Water Volume (m³) |

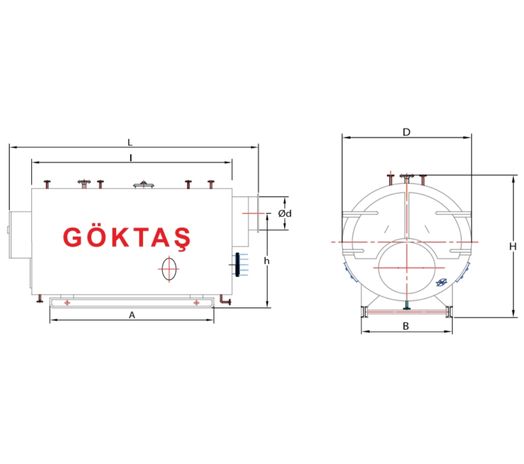

Dimensions (mm) | Approximate Weight (Kg) – Operating Pressure (bar) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kcal/h) | (kW) | D | H | I | L | A | b | d | h | 6 | 8 | 10 | 12 | 15 | |||
| GBK 25 | 600.000 | 698 | 50 | 2,4 | 1600 | 1950 | 2870 | 3520 | 2000 | 1150 | 350 | 1460 | 3,1 | 3,3 | 3,6 | 4,0 | 4,5 |
| GBK 30 | 720.000 | 838 | 50 | 3,0 | 1850 | 2200 | 3380 | 4130 | 2400 | 1400 | 400 | 1700 | 4,6 | 4,9 | 5,3 | 5,9 | 6,7 |
| GBK 40 | 960.000 | 1.117 | 50 | 3,8 | 1950 | 2300 | 3510 | 4260 | 1500 | 400 | 1780 | — | 5,1 | 5,4 | 5,8 | 6,4 | 7,2 |
| GBK 50 | 1.200.000 | 1.395 | 60 | 4,7 | 2200 | 2550 | 3420 | 4170 | 2500 | 1700 | 450 | 1920 | 6,1 | 6,5 | 7,0 | 7,7 | 8,7 |
| GBK 60 | 1.440.000 | 1.675 | 65 | 6,1 | 2200 | 2550 | 4050 | 4800 | 3100 | 1700 | 450 | 1920 | 6,9 | 7,3 | 7,9 | 8,7 | 9,8 |
| GBK 70 | 1.680.000 | 1.954 | 65 | 7,2 | 2400 | 2750 | 3700 | 4450 | 2800 | 1900 | 500 | 2050 | 7,9 | 8,4 | 9,1 | 10,1 | 11,4 |
| GBK 80 | 1.920.000 | 2.233 | 65 | 8,0 | 2400 | 2750 | 3920 | 4770 | 3000 | 1900 | 500 | 2050 | 8,4 | 8,9 | 9,6 | 10,6 | 12,0 |
| GBK 90 | 2.160.000 | 2.512 | 65 | 8,5 | 2400 | 2750 | 4170 | 5000 | 3250 | 1900 | 550 | 2050 | 9,4 | 10,0 | 10,8 | 11,9 | 13,4 |
| GBK 100 | 2.400.000 | 2.791 | 70 | 8,8 | 2400 | 2750 | 4500 | 5450 | 3500 | 1900 | 550 | 2050 | 10,8 | 11,4 | 12,3 | 13,6 | 15,4 |
| GBK 125 | 3.000.000 | 3.488 | 75 | 9,5 | 2600 | 2950 | 4420 | 5370 | 3500 | 2000 | 600 | 2270 | 11,2 | 11,9 | 12,9 | 14,3 | 16,2 |
| GBK 140 | 3.600.000 | 4.186 | 75 | 12,2 | 2600 | 2950 | 4420 | 5370 | 3900 | 2000 | 650 | 2270 | 13,2 | 14,0 | 15,1 | 16,7 | 18,9 |
| GBK 175 | 4.200.000 | 4.884 | 80 | 13,6 | 2700 | 3050 | 5480 | 6430 | 4500 | 2100 | 700 | 2300 | 13,9 | 14,7 | 15,9 | 17,6 | 19,9 |
| GBK 200 | 4.800.000 | 5.582 | 85 | 16,1 | 2700 | 3050 | 5520 | 6470 | 4600 | 2100 | 700 | 2300 | 14,8 | 15,7 | 17,0 | 18,8 | 21,2 |
| GBK 225 | 5.400.000 | 6.279 | 90 | 18,4 | 2900 | 3250 | 5850 | 6900 | 4900 | 2300 | 750 | 2450 | 17,4 | 18,4 | 19,9 | 22,0 | 24,9 |
| GBK 250 | 6.000.000 | 6.977 | 90 | 20,0 | 3100 | 3450 | 5900 | 6950 | 4900 | 2550 | 850 | 2700 | 19,1 | 20,2 | 21,9 | 24,2 | 27,3 |
| GBK 275 | 6.600.000 | 7.675 | 95 | 21,6 | 3200 | 3550 | 6520 | 7300 | 5300 | 2550 | 850 | 2700 | 20,7 | 21,9 | 23,7 | 26,2 | 29,6 |
| GBK 300 | 7.200.000 | 8.372 | 95 | 22,4 | 3300 | 3650 | 6560 | 7650 | 5600 | 2600 | 900 | 2800 | 23,1 | 24,5 | 26,5 | 29,3 | 33,1 |
| GBK 325 | 7.800.000 | 9.070 | 100 | 23,8 | 3400 | 3750 | 6200 | 7350 | 5300 | 2650 | 950 | 2850 | 25,9 | 27,5 | 29,8 | 33,0 | 37,3 |
| GBK 350 | 8.400.000 | 9.768 | 100 | 24,5 | 3500 | 3850 | 6750 | 8000 | 5800 | 2800 | 1000 | 2950 | 28,5 | 30,2 | 32,7 | 36,2 | 40,9 |
